Semi Auto
Application – All types of solids and free flow powder, Open Mouth , Valve mouth
Feeder – Gravity, Screw, Belt and motorised valve
Products-

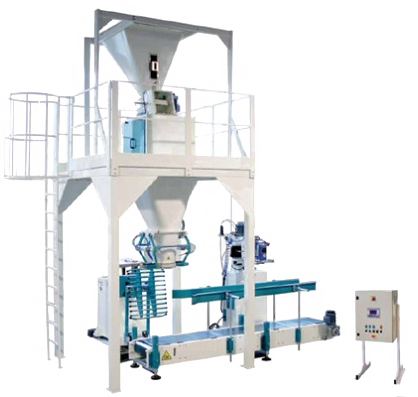

Nett weigher baggers are designed to fill 5-100 kg. open mouth/Valve mouth bags with free-flowing, granular, pelleted materials such as seed, grain, fertilizer, minerals, crystalline materials, fertilizer, corn, soybeans, salt, sugar, sand, limestone, refractory materials and plastic pellets. Net weigh baggers are available with an electronic scale. The material is loaded into a fill hopper. A flow gate is adjusted to determine the flow rate into the weigh hopper. When the desired weight is obtained, the fill gate closes. Then a 2nd gate at the bottom of the weigh hopper opens and the material drops through a funnel spout into a bag. Net weigh gravity baggers can fill up to 15 bags/minute with accuracy up to +/- 0.1% of full scale.
Specification & Features -
- Obtainable accuracies as high as +/- 20 grams
- Speeds up to 15 bags per minute
- Customized program & graphics
- Each bag / preset sampling for automatic weight correction
- Pneumatic flow control gate
- Pneumatic bag clamps
- Electronic load cell weighing
- Bulk and dribble feed
- Bulk only & dribble only feeds
- Display in kg
- Auto tare
- Bag hold switch
- Auto hold for underweight/ overweight bags
- Bag-in-place switch
- Bag clamp auto start switch
- Dust pickup port
- MOC – MS / SS
UTILITY REQUIREMENTS
Electrical: 415 VAC, 3 Phase, 50 Hz
230 VAC, 1 Phase, 50 Hz
Air – Dry & clean compressed air – 5.5 kg/cm2
