Sealing

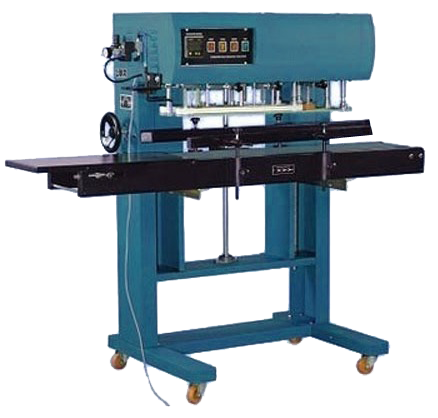

Hightech offers hand held, portable, table top, and structure mounted commercial band sealers.
Band sealers have two bands, typically infused with PTFE to prevent sticking, that hold the top of the bag and carry it between heating elements which hermetically seal the bag closed. Depending on the type of bag, Band sealers can be used to seal a wide variety of bags or pouches such as: polyethylene (PE, LLDPE, HDPE) polypropylene (PP), Kraft/PE, Tyvek, polymylar, foil/PE, Cryovac, coextrusions, polylaminates, and nylon bags.
Band sealers can be operated in a horizontal, tilted, or vertical position. The vertical position is used if the product can flow out of the bag (i.e. powders, liquids) and the horizontal position is used when the bag can be laid on its side.
Bags can be manually or automatically fed into the band sealer. Bags over a few pounds typically require a support conveyor.
Options include: bag fillers, printers, coders, embossers, floor stands, bag trimmers, and synchronized support conveyors.
STANDARD FEATURES
- Stainless steel finish compatible with the hygienic requirements of the food, medical, and chemical industries
- Speed from 5 to 75 feet per minute1
- Produces reliable, attractive seals on bags or pouches made from polyethylene, polylaminates, co-extrusions, and shrink film
- Compact and durable stainless steel housing
- High-efficiency band-sealing module seals a wide variety of bag types and sizes
- Enhanced airflow design
- Innovative direct drive uses food grade lubricant
- Easy-to-use controls adjust the variable-speed drive and the motorized sealing-height pedestal mechanism—allowing quick & easy product changeovers
- Fast-and-easy change Teflon® bands
- Creates seals up to 12 mms wide
- Standard right-to-left operating configuration
- Open architectural design simplifies maintenance and reduces downtime
- PID temperature controller with full digital readout
- Cool-down mode ensures safe, automatic shutdown
OPTIONS
- Left-to-right configuration
- Bag top cleaner
- Bag top trimmer
- Additional PID temperature controllers
- Left-to-right operating configuration
NOTE -Testing might be required to determine obtainable speeds for your application
