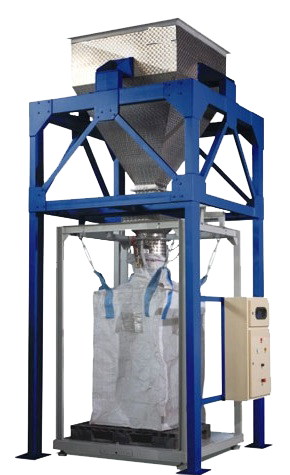

Jumbo Weigher
HIGHTECH jumbo bagging systems are semi-automated, bulk bag filler used to fill intermediate bulk containers (FIBCs), totes or super sacks. After the bag is hooked on the weighing table and the bag fill spout attached, the table and bag are pneumatically raised to the fill position. The bag is tarred and filled to the desired weight using a fast and dribble fill cycle controlled with a dual position knife valve. After reaching the desired weight, the weigh table & bag are lowered down to the slated takeaway conveyor where the bag is moved away to a pick up point.
- Speed Up to 8 bags/hr.
- Accuracy Up to 0.1%
- Weight Range 250 kg to 1000 Kg.
- Bag lengths up to 2100
- Bag squaring unit
- Movable platform
- Painted tubular carbon steel
- Inflatable neck seal and spout conform to all bag neck sizes
- Bag strap clamps are designed to accommodate various size bags
UTILITY REQUIREMENTS
Electrical: 415 VAC, 3 Phase, 50 Hz
230 VAC, 1 Phase, 50 Hz
Air – Dry & clean compressed air – 5.5 kg/cm2
