Liquid Fillied

Specifications
1.for filling all types of liquid
2.for drum 50~50kgs
3.top filling, high filling accuracy

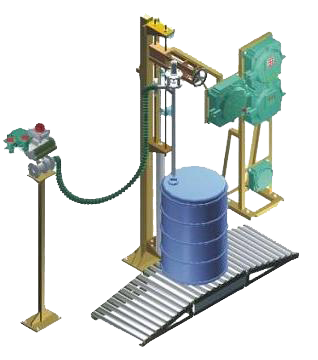

Drum filling machine is also known as oil drum filling machine, drum packing machine, lube oil filling packing machine

Features:
1) The drum filling packing machine is widely used for filling medium and small capacity liquid with various
viscosities. It is the top-filling type
2) Automatically subtracting weight of container
3) Arbitrarily sets filled liquid weight in design of weighing scope
4) Automatically controls filling at fast or slow speed to prevent over washing
5) Displays statistic data, such as accumulate filling frequency and total filling weight
6) Possesses printer output interface
7) Adopts USA Medl-Toredo weight instruments and sensors

Main technical parameters:
1) Filling weight: 50 - 400kg
2) Production capacity: 40 - 60 barrels/hour (180kg/barrel)
3) Weighing error: ≤0.2%
4) Liquid inlet pressure: 0.3 - 0.35MPa
5) Working pneumatic pressure: 0.6 - 0.7MPa
6) Power supply: AC 220V±10%
7) Power consumption: ≤ 0.1kW
